DOSIMETRY

About Phantoms

Standard Imaging offers a wide variety of phantoms for performing routine QA checks and to verify the accuracy of treatment plans. Whether you need a single phantom or a comprehensive system for commissioning, training, QA, and dose verification, we have products that fit your needs.

LUCY 3D QA PHANTOMS

DOSEVIEW 3D

The DoseView 3D is a new 3-axis water phantom for performing comprehensive linear accelerator beam commissioning and quality assurance measurements quickly, accurately and intuitively.

MIMI PHANTOM

Test the coincidence of the isocenter prescribed by the lasers, treatment beam, and image guidance systems

IMRT DOSE VERIFICATION PHANTOM

Gain confidence in the accuracy of your treatment plans and help improve patient outcomes.

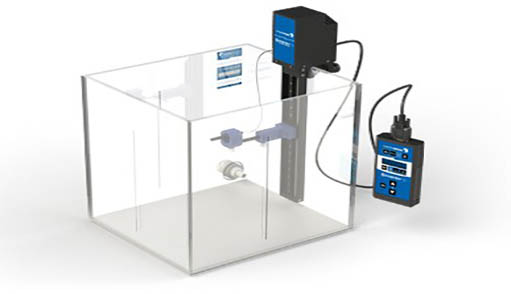

DOSEVIEW 1D

Easily acquire depth-dose measurements in an intuitive, TG-51 and TRS-398 compliant 1D water scanning system.

STEREOTACTIC DOSE VERIFICATION PHANTOM

Dose measurements with film and ion chambers for commissioning treatment systems and for specific plan dose verification.

ARC QA PHANTOM

The ARC QA Phantom provides machine and patient QA for rotational treatment systems such as Varian RapidArc™, Elekta VMAT™, and TomoTherapy®

WINSTON-LUTZ PHANTOM

A common QA procedure to verify isocenter for stereotactic radiosurgery is the Winston-Lutz Test. The Winston-Lutz Pointer Phantom facilitates ball marker alignment with the laser-described isocenter during this test, allowing for easy execution of all necessary Stereotactic QA procedures.

3D WATER PHANTOM CHAMBER BRACKET

Use Standard Imaging Exradin Ion Chambers with an existing 3D water phantom

ACE IMRT PHANTOM

Combine the ACE IMRT Phantom with existing Virtual Water pieces to augment current QA protocols.

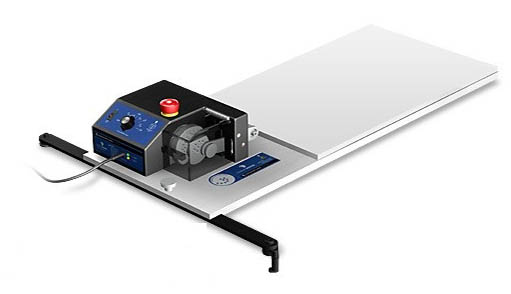

RESPIRATORY GATING PLATFORM

The unique Respiratory Gating Platform simulates breathing providing the means to create a comprehensive program for commissioning, training, quality assurance and dose verification of gated IMRT treatments

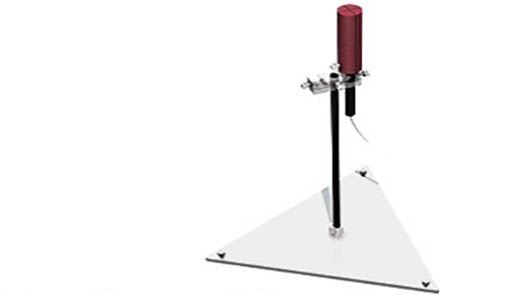

MINIPHANTOM & IN-AIR COMPARISON JIG

Measure head-scatter factors down to a 3 cm x 3 cm field size simply and easily without side scatter from a water tank.

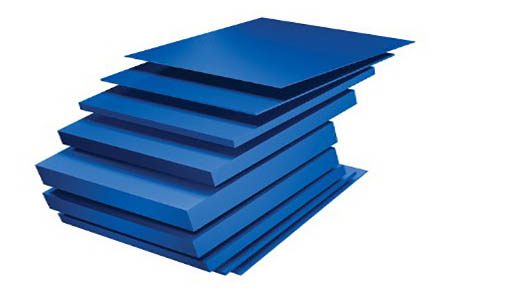

VIRTUAL WATER

Virtual Water is an ideal alternative to traditional water tanks for performing routine QA checks of a linear accelerator using photon or electron beams.

BLUE WATER

BlueWater is a fast, easy-to-set-up alternative to traditional water tanks for routine checks of a linear accelerator’s photon beam.

TOMOTHERAPY HI-ART SYSTEM QA

Advanced instruments for performing TomoTherapy Hi-Art System quality assurance

About Thimble Ion Chambers

• For absolute dosimetry calibrations in water, air or other phantom material
• Inherently waterproof construction for use in most water tanks — eliminating the need for waterproofing sleeves or protective coatings
• Nucletron® TMS, THERAPLAN®, and Oncentra®
• Chamber vents through a flexible tube surrounding the triaxial cable — vent tube is sealed to the chamber body and open near the connector; ideal for use in water or plastic phantoms
• Matching 2.8 mm thick Cobalt-60 build-up cap of C552 Shonka air-equivalent plastic included for in-air measurements. Additional Delrin and brass build-up caps available

About Phantoms

Standard Imaging offers a wide variety of phantoms for performing routine QA checks and to verify the accuracy of treatment plans. Whether you need a single phantom or a comprehensive system for commissioning, training, QA, and dose verification, we have products that fit your needs.

Standard Imaging offers versatile, accurate reference grade electrometers for use in a wide range of radiation therapy applications, including external beam, low dose, high dose, intravascular brachytherapy, diagnostic x-ray, and mammographic x-ray.

SUPERMAX ELECTROMETER

MAX4000 ELECTROMETER

CDX2000B ELECTROMETER

About Phantoms

Standard Imaging offers a wide variety of phantoms for performing routine QA checks and to verify the accuracy of treatment plans. Whether you need a single phantom or a comprehensive system for commissioning, training, QA, and dose verification, we have products that fit your needs.
